1. Briefing

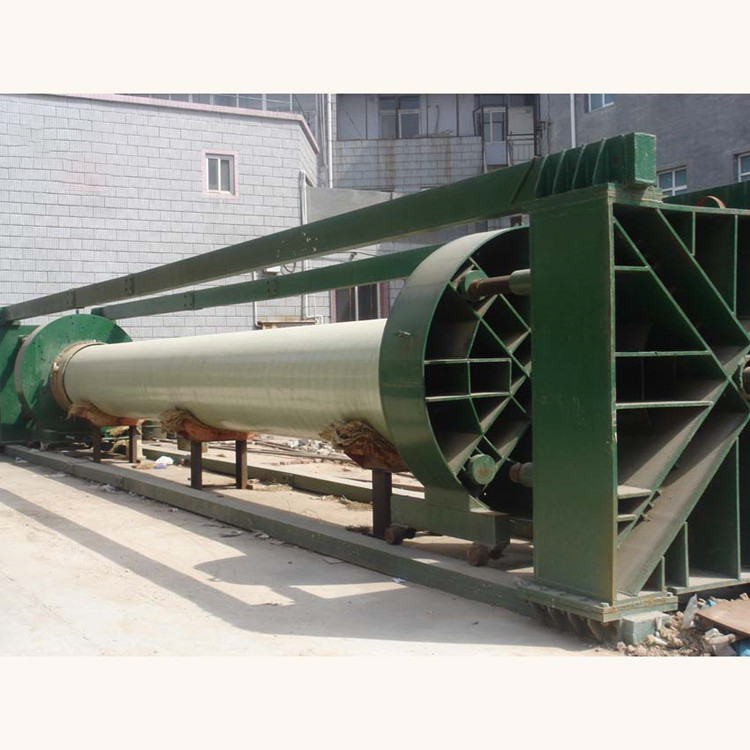

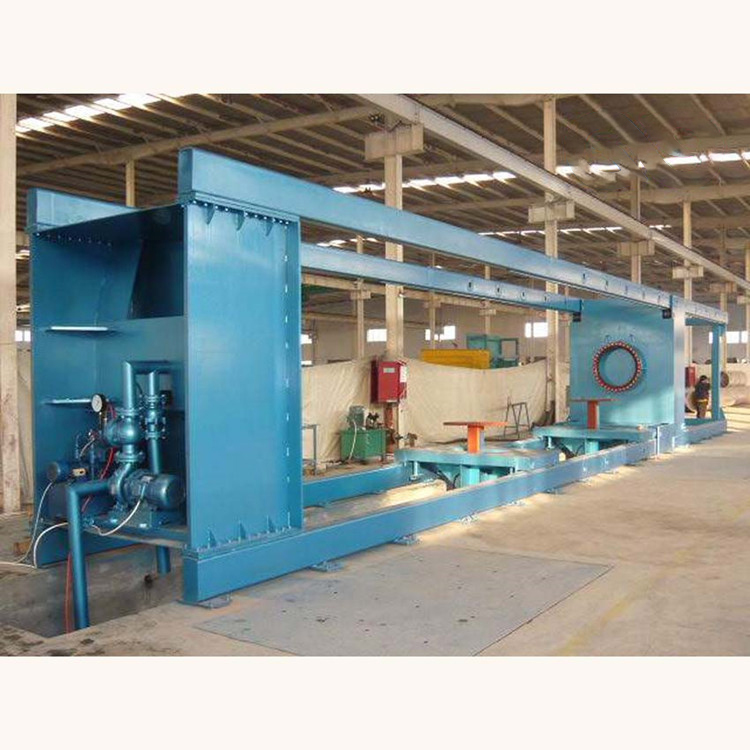

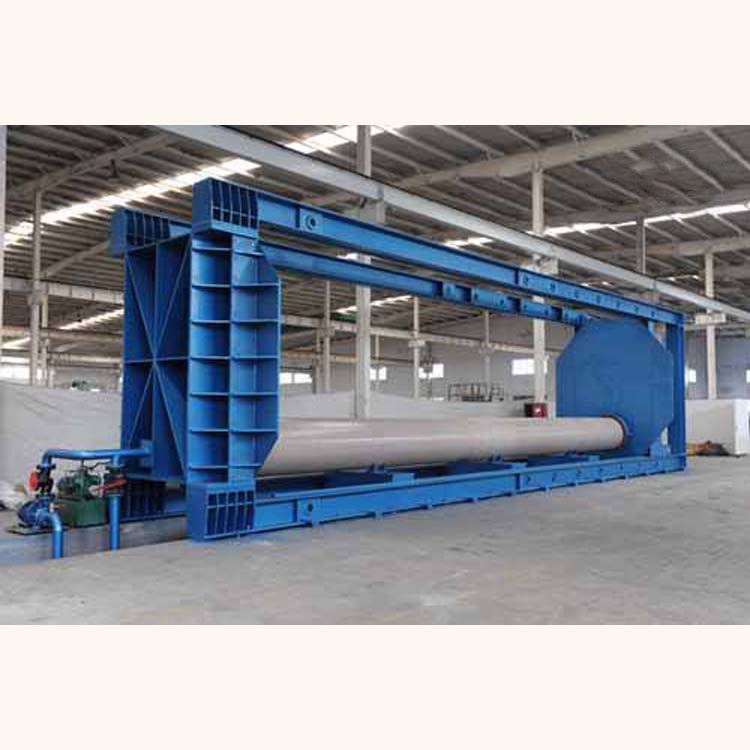

SY-2500Ⅲ FRP pipe hydrostatic pressure testing machine is one kind of special device for inspecting the leakage of FRP pipe. The characteristics are: reasonable structure, convenient operation, high efficiency and wide range of suitable diameter.

2.Main technical parameter
2.1 Capacity: 27.1 KW
2.2 Range of suitable diameter: DN250-DN2500mm
2.3 Rated pressure of hydraulic pumping station: 16MPa
2.4 Rated discharging pressure of electric pump: 3.5MPa
2.5 Flux of electric pump:560L/h(High pressure); 1120L/h（Low pressure）
2.6 Centrifugal pump of clean water: Flux Q=120m3/H, lift: H=28m

3. Elements
It is composed of water supply system, hydraulic system, upper longitudinal beam, bottom longitudinal beam, wall plate, spigot-and-socket active plate, assembly of support rod, support tray, fork bracket, spigot-and-socket envelop cover and electric control box.
