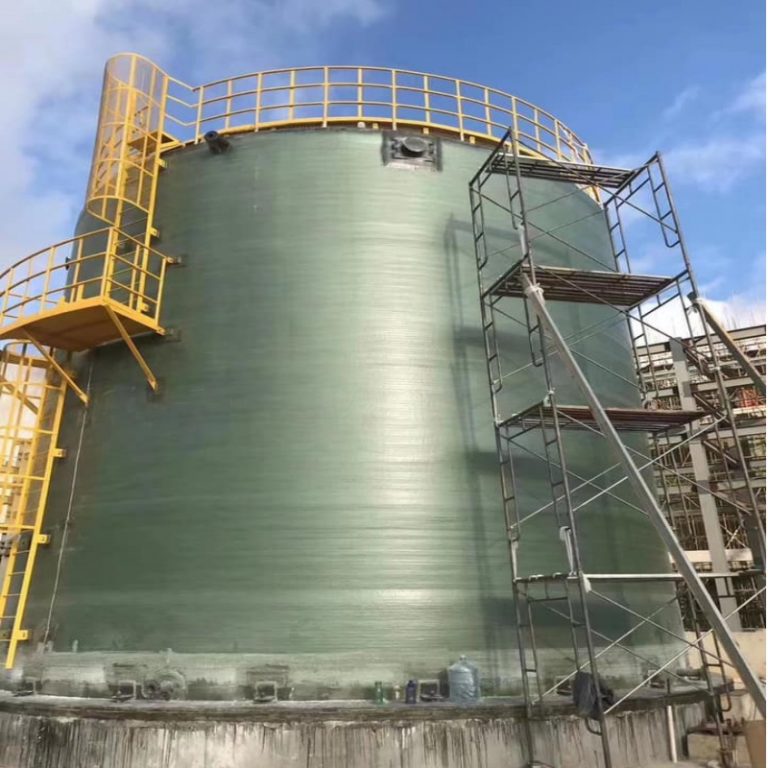

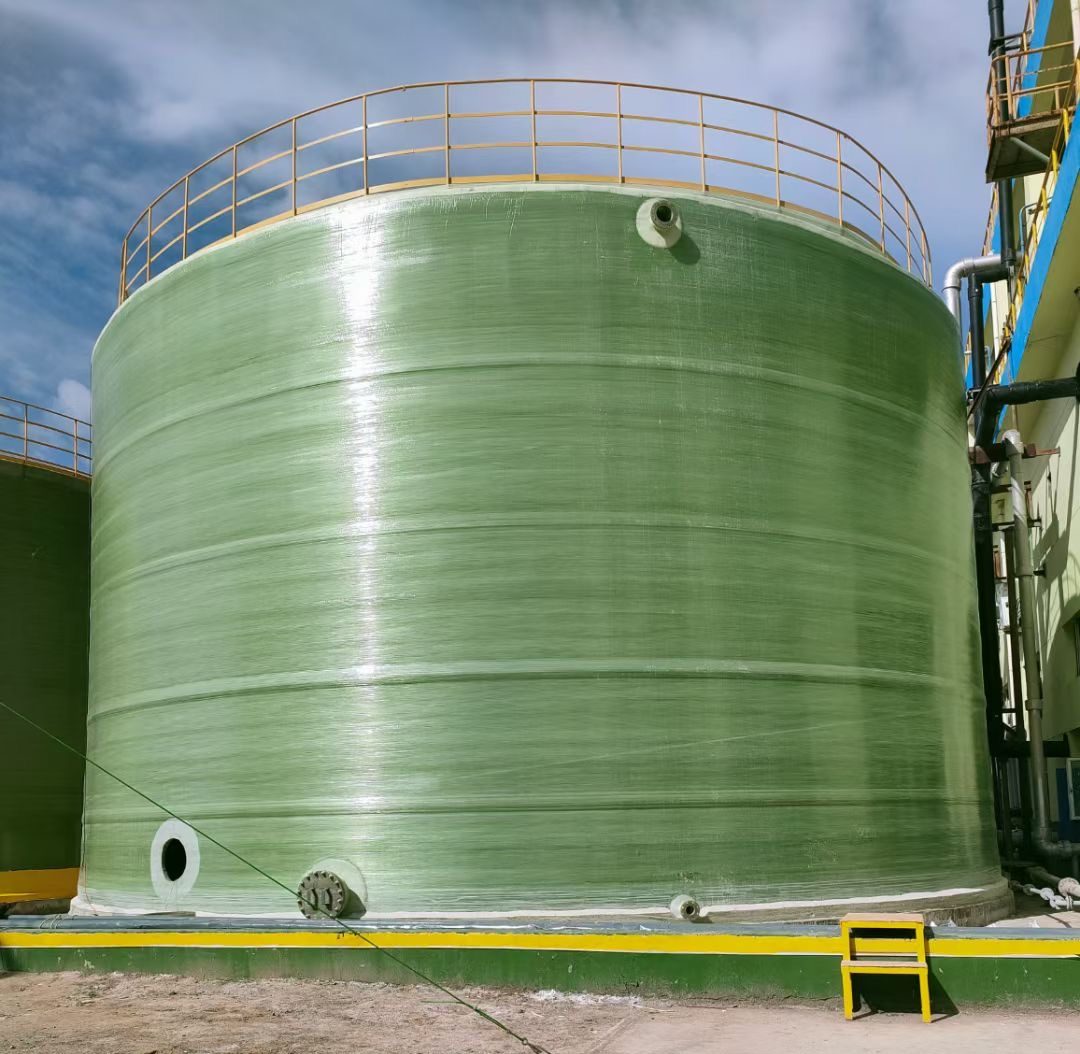

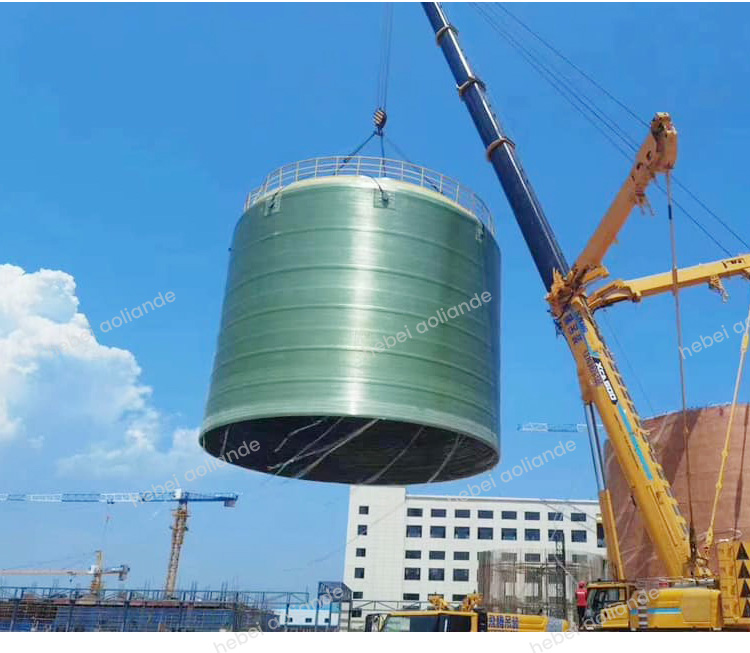

Be restricted by the transportability, the tank which its diameter is more than DN4000mm has been become the difficult point between the ordering party and the contracting party. To meet the requirements of the order party, our company developed this set of large scale site winding, this set is combined structure, can be assembling or dismountable, the set can be transported to the client site .The set is to be assembled beside the foundation of the large tank according to the requirements of the client. Then the large tank can be finished.
Be restricted by the transportability, the tank which its diameter is more than DN4000mm has been become the difficult point between the ordering party and the contracting party. To meet the requirements of the order party, our company developed this set of large scale site winding, this set is combined structure, can be assembling or dismountable, the set can be transported to the client site .The set is to be assembled beside the foundation of the large tank according to the requirements of the client. Then the large tank can be finished.
Be restricted by the transportability, the tank which its diameter is more than DN4000mm has been become the difficult point between the ordering party and the contracting party. To meet the requirements of the order party, our company developed this set of large scale site winding, this set is combined structure, can be assembling or dismountable, the set can be transported to the client site .The set is to be assembled beside the foundation of the large tank according to the requirements of the client. Then the large tank can be finished.
Be restricted by the transportability, the tank which its diameter is more than DN4000mm has been become the difficult point between the ordering party and the contracting party. To meet the requirements of the order party, our company developed this set of large scale site winding, this set is combined structure, can be assembling or dismountable, the set can be transported to the client site. The set is to be assembled beside the foundation of the large tank according to the requirements of the client. Then the large tank can be finished.
I. FW-15000 Computer Control Horizontal Site Winding Machine
The major properties of the equipment are below:
1.1 The maxi diameter can be wound: 15000mm
1.2 The maxi length can be wound: 12000mm
1.3 The range of diameter: DN4000~DN15000mm
1.4 The maxi torque: 68350N•m
1.5 The total power: 18.6kw
1.6 The maxi width of roving sheet: 1680mm
1.7 The productivity: 550kg/h

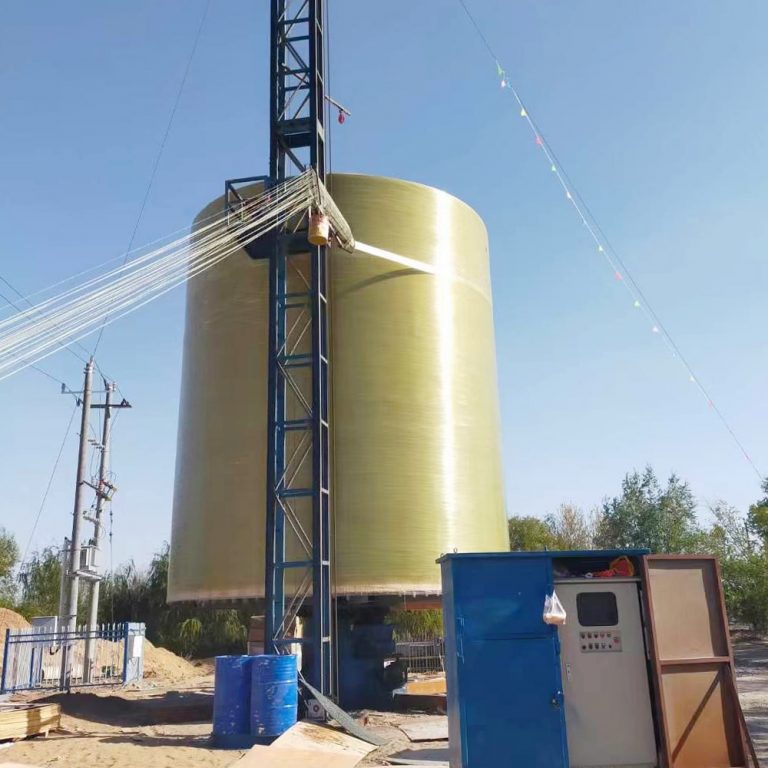

Ⅱ. VFW-25000 Computer Control Vertical Site Winding Machine
1. General
VFW-25000 computer control vertical site winding machine is the most advanced winding machine (hereinafter called Winding Machine) with super large diameter developed by our company, absorbing the foreign advanced technique. It is controlled by computer, specially used for site winding of large caliber FRP tanks. This machine can produce FRP tanks with the diameter from 4m to 25m with the suitable mandrel. The control center of this machine is industrial computer made in Taiwan. Once input the parameters of winding product, the computer can finish the design of linearity of the tank automatically, and then control the compound movement of mandrel rotation and the shift of trolley, put the fiberglass immersed by resin on the inner liner fully in order. This winding machine is the combination of technique and science, such as mandrel rotation, shift of the trolley, and layout of winding roving are all precisely controlled by computer software. The FRP products wound by this machine are widely used in chemical industry, petroleum, and brewery and so on.
2. Parameters of the Winding Machine
Winding diameter scope: 4m-25m
Max height for each section: 6m (Note: if it is more than 6m, it can be formed by many sections )
Winding angle: 60°-90°
Max rotating speed of the mandrel: 4.6rpm
Woven roving strands: 70*
Productivity: 500Kg/h*
*Note：The productivity and the quantity of strand is based upon the quality of roving
| FRP Vertical Tank Filament Winding Machine | |
| Specification | FRP Tank of DN4000-1oooo mm, H≤12000 mm |
| FRP Tank of DN11000-16ooo mm, H≤10000 mm | |
| FRP Tank of DN17000-2oooo mm, H≤8000 mm | |
| FRP Tank of DN21000-25ooo mm, H≤6000 mm | |
| Product Height | 6000-15000 mm |
| Winding Angle | ≥45°, ≤90° |
| Fiber-Drawing Speed | ≤110 m/min |
| Mandrel Speed | 6.7 rpm/min |
| Equipment Total Power | 55±5 KW |
| Requirement of Installation Space | W=35000 mm, L=35000 mm |
3. Components of the Winding Machine

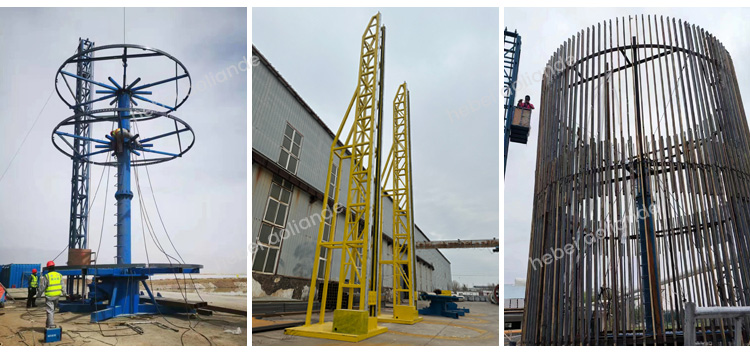

3.1 Rotating platform and vertical post driven by hydraulic system
3.2 Hydraulic pump station
3.3 Computer control system and power distribution box
3.4 Resin supply system
3.5 Roving framework and tension controller
3.6 Resin immersing system
3.7 Winding trolley
3.8 Trolley transmission system
3.9 Trolley lift guide track framework

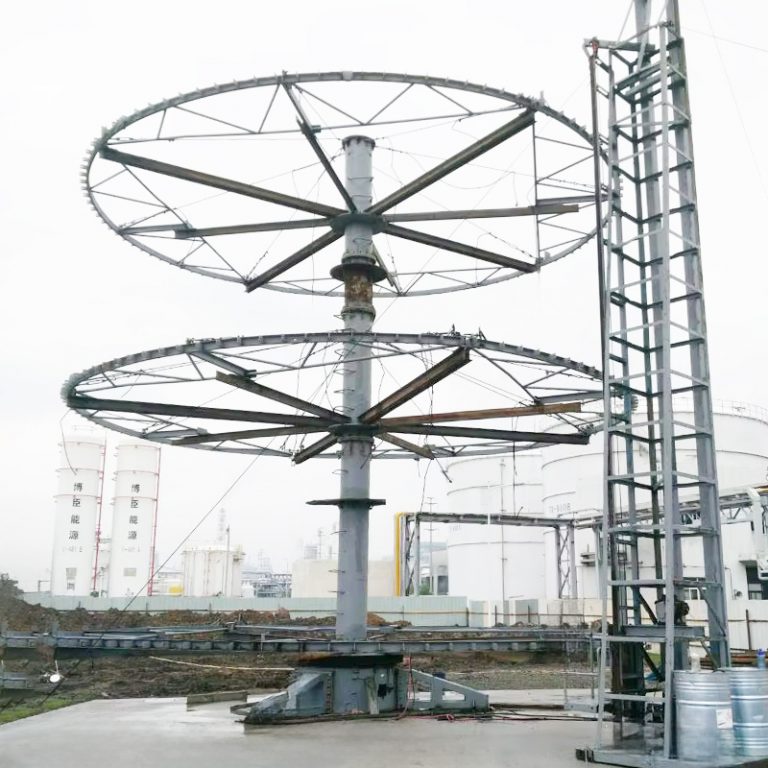

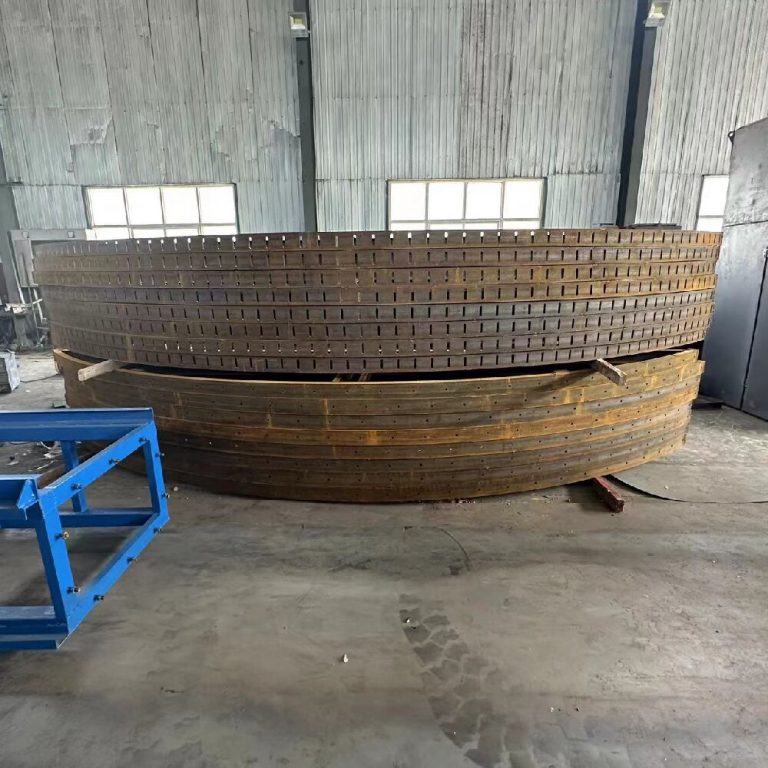

3.10 Mandrel support ring (one specification will be provided upon the requirement of the client)
3.11 Resin pump and spraying gun
3.12 Compressed air supply system (1.4m3, 7 bars)
3.13 Lift platform (lift capacity is 300kg and lift height is 6 meters)
4. Key elements
4.1 Industrial computer: made in Taiwan, China
4.2 Servo motor and driver of the trolley: Siemens
4.3 Photoelectrical encoder: Siemens
4.4 Planet cycloid reducer: from Jiangsu Hongtai Group, China
4.5 Electrical elements from CHNT, People Electricity and Delixi Group
5. Excellent post-sale service
One stop service for installation, adjustment and training. We also provide the drawing of molds.
