The key elements such as the transducer, servo system and photoelectrical encoder are from Siemens, Germany; the industrial control computer is made by Yanhua Corporation, Taiwan, showing the Chinese ideograph chrominance, operating easily.
The key elements such as the transducer, servo system and photoelectrical encoder are from Siemens, Germany; the industrial control computer is made by Yanhua Corporation, Taiwan, showing the Chinese ideograph chrominance, operating easily.
The key elements such as the transducer, servo system and photoelectrical encoder are from Siemens, Germany; the industrial control computer is made by Yanhua Corporation, Taiwan, showing the Chinese ideograph chrominance, operating easily.
The key elements such as the transducer, servo system and photoelectrical encoder are from Siemens, Germany; the industrial control computer is made by Yanhua Corporation, Taiwan, showing the Chinese ideograph chrominance, operating easily; after the parameters inputted into the computer, it can be finished the relative design of winding linearity automatically. The combined movements of the main axle and the carriage controlled by the computer, conforms the winding rules, the technical parameters and its inner quality have arrived the advanced level in China, and the properties are below:
1. The range of diameter can be wound: DN600~ DN4000mm
2. The maxi length: 12000mm
3. The winding angle: 45°<α<90°
4. The total power: 10kw
5. The tolerance of positioning: ＜1mm
6. The maxi width of roving sheet: 150mm
7. The productivity: 500kg/h
Product Specification
| Model number | Control | Max Diameter(mm) | Max Length(mm) | Diameter Range(mm) | Total Power(kw) | Max width of roving seet(mm) |
| FW-4000Ⅲ | computer | 4000 | 12000 | 600-4000 | 10 | 150 |
| JFW-1500 | semi-automatic | 1500 | 6000 | 25-1500 | 5.5 | 150 |
| JFW-2500 | semi-automatic | 2500 | 12000 | 25-1500 | 7.5 | 150 |

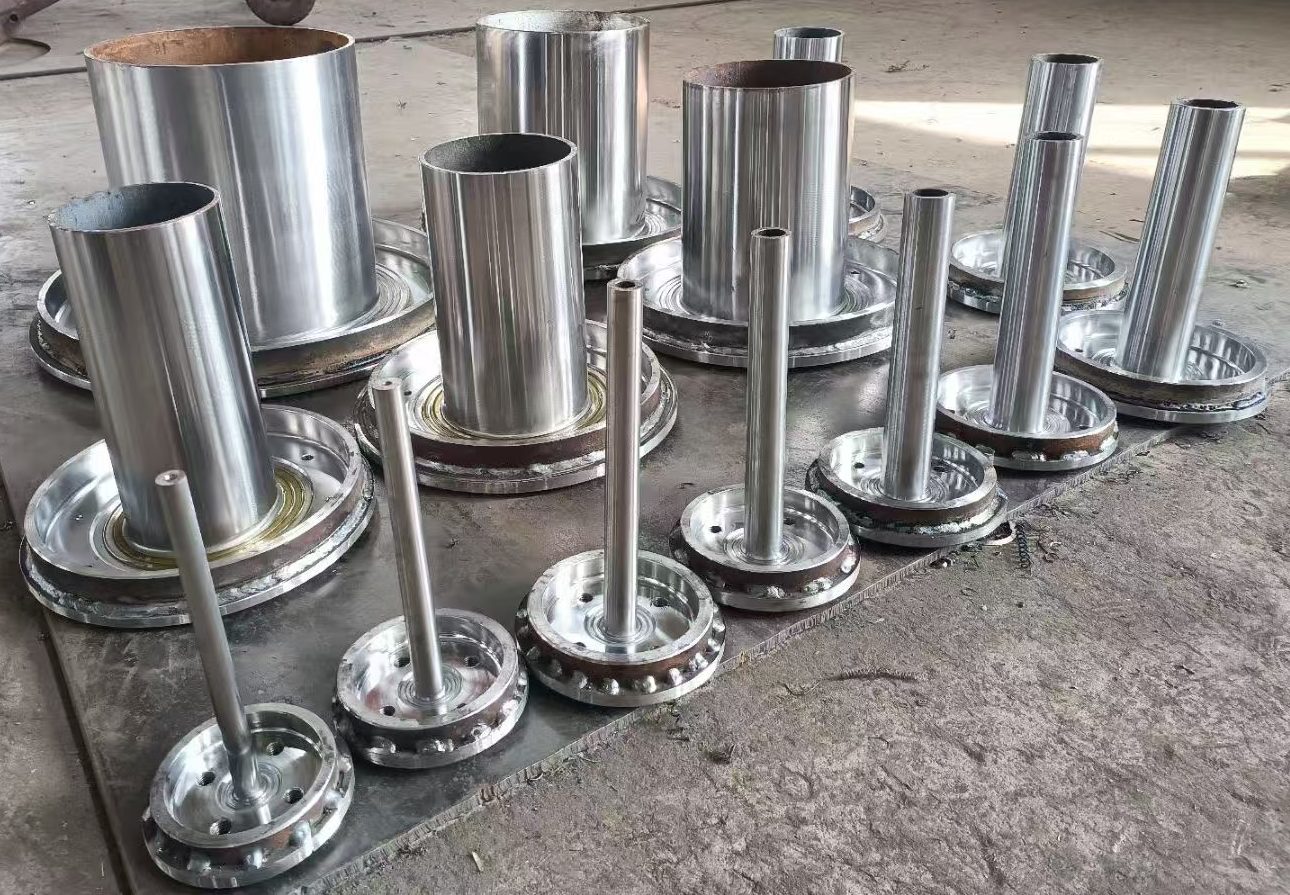

FRP fitting molds

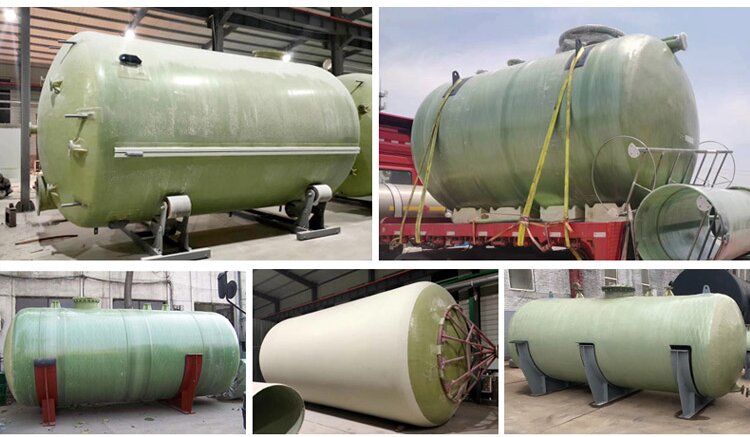

Finished Product
