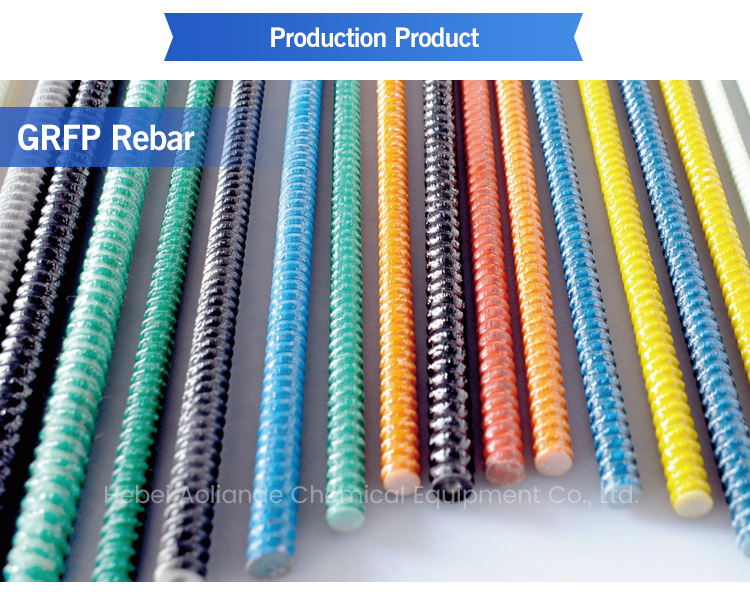

The FRP rebar machine is mainly used to produce various specifications of frp rebars, the unit can automatically complete the yarn splitting, impregnation, pre-forming, winding, heating and curing, hauling, fixed-length cutting and collection and stacking.

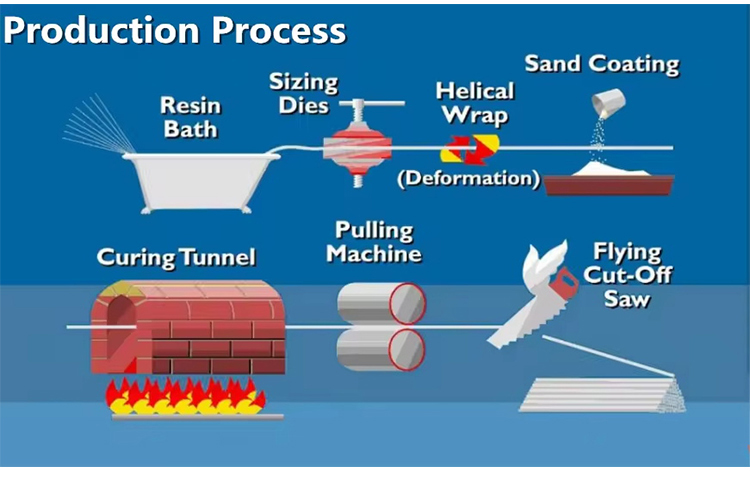

Structure principle of FRP rebar machine

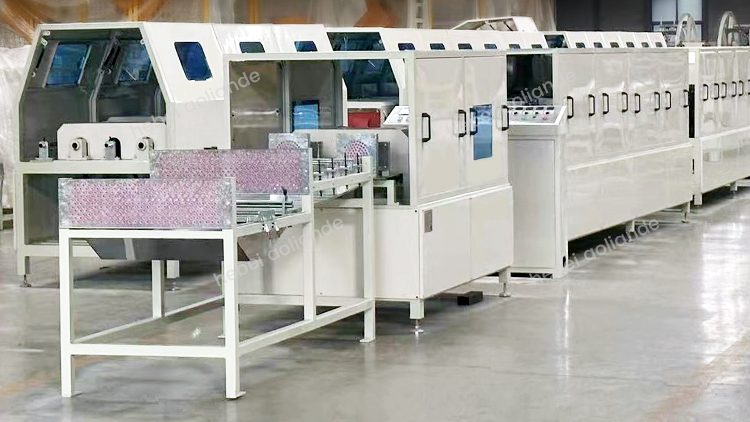

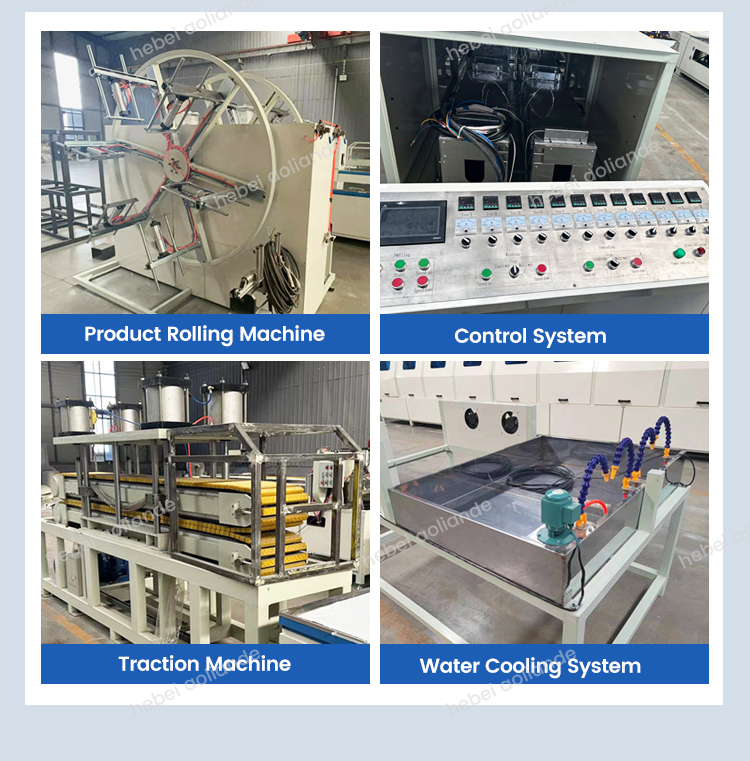

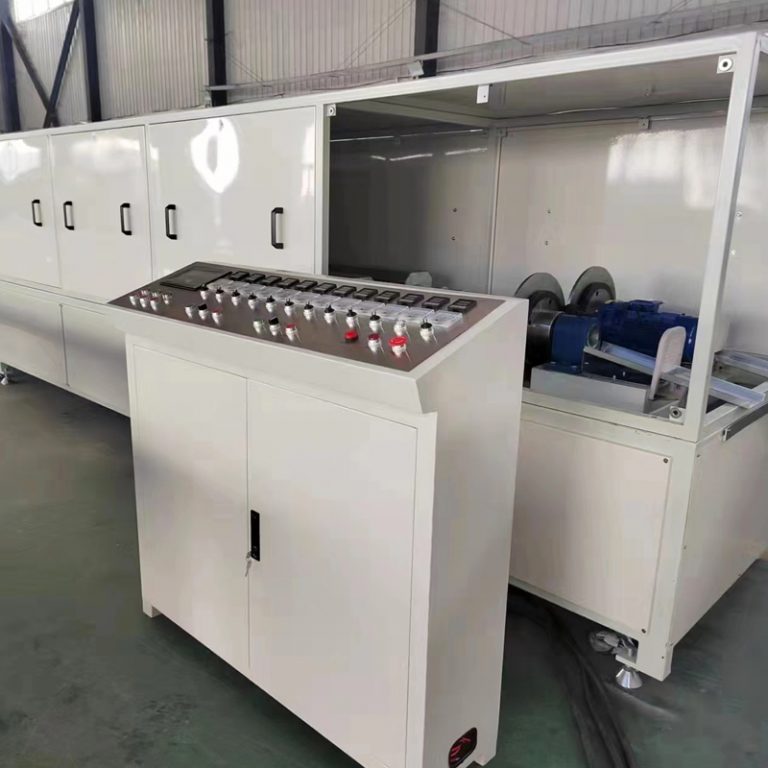

This FRP rebar machine mainly consists of yarn frame, dipping tank, winding, oven, traction machine, cutting saw and stacking device.
1. Yarn frame: Placing the yarn group, assembled split type, easy to in stall.

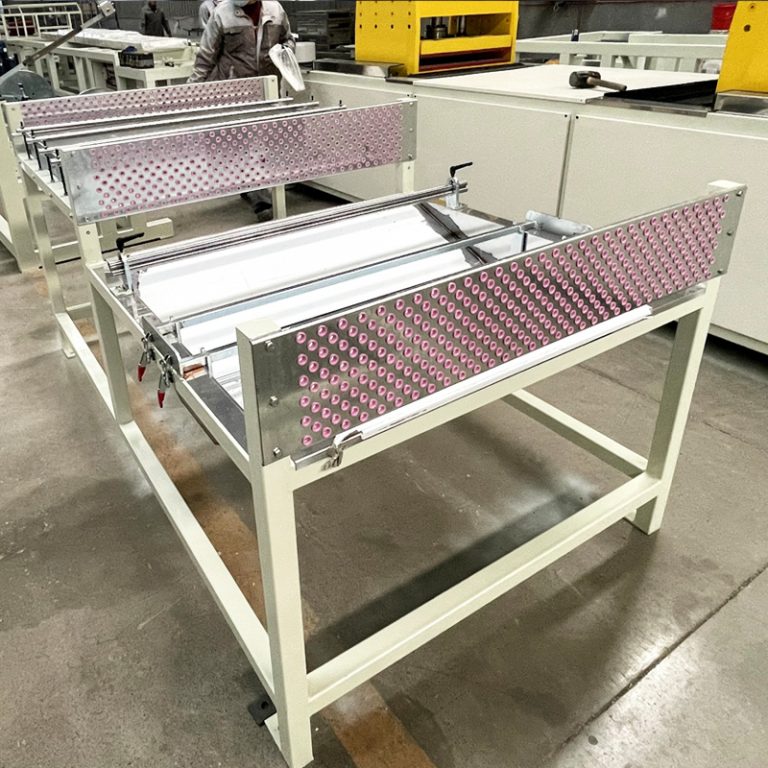

2. Dipping tank: Welded with stainless steel material, with internal pressure roller to make the roving fully impregnated in the resin.

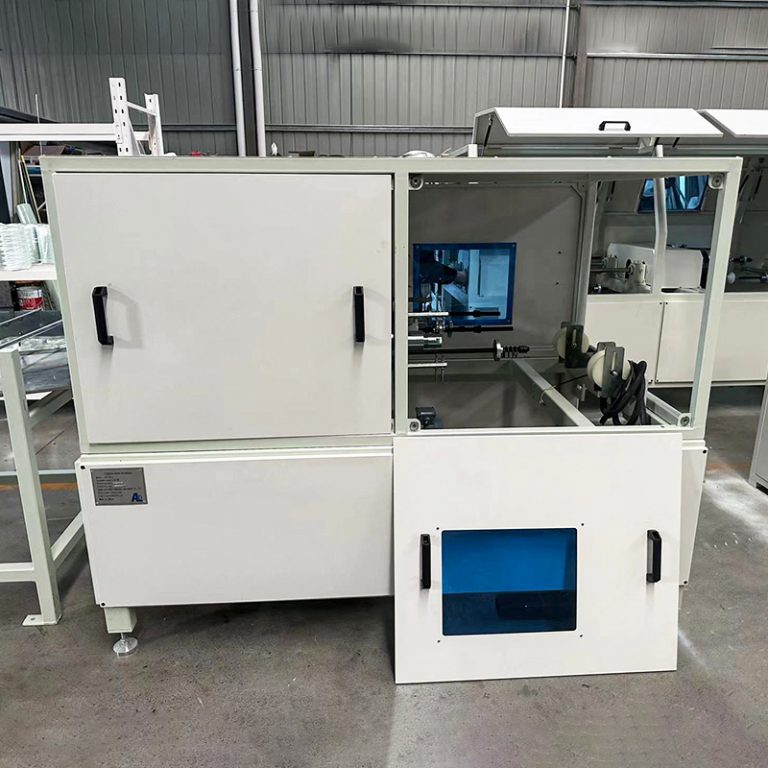

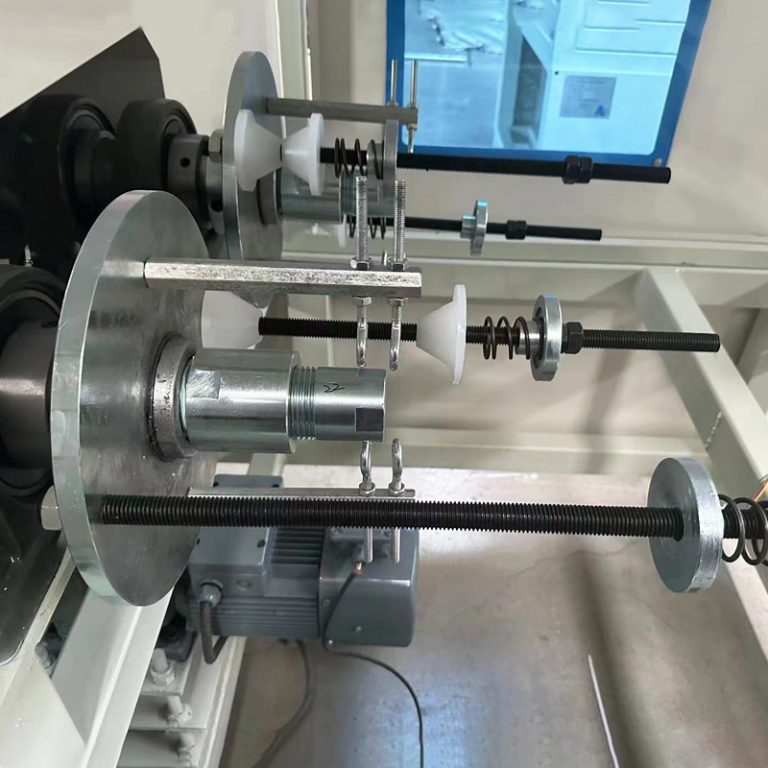

3. Winding device: Adopts gear transmission to drive the thread roller t o rotate around the product and wind the thread. Adopting frequency conversion speed control method, the speed can be adjusted steplessly, and it can produce 4 p i e c e s G F R P rebars at the same time.

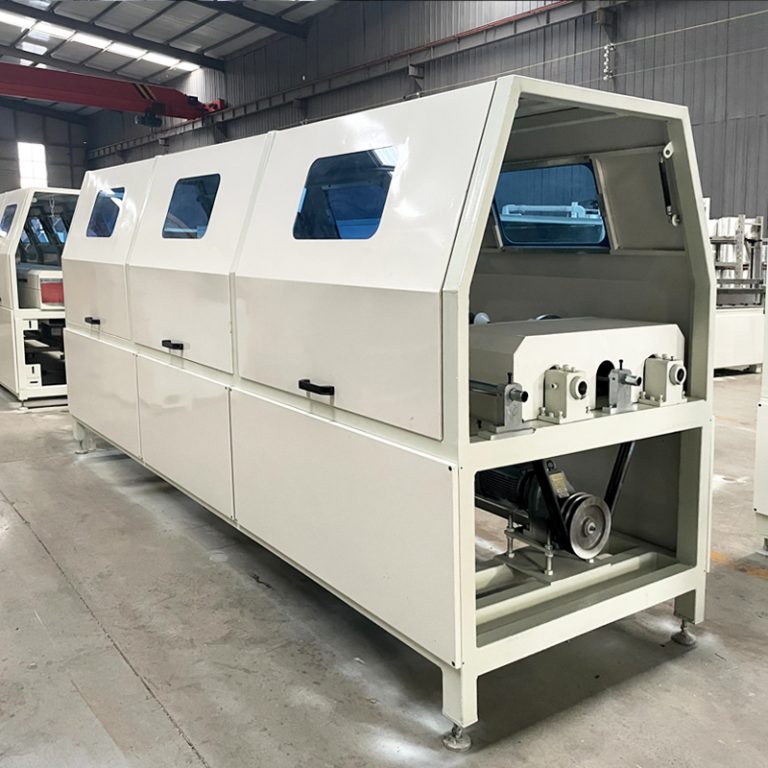

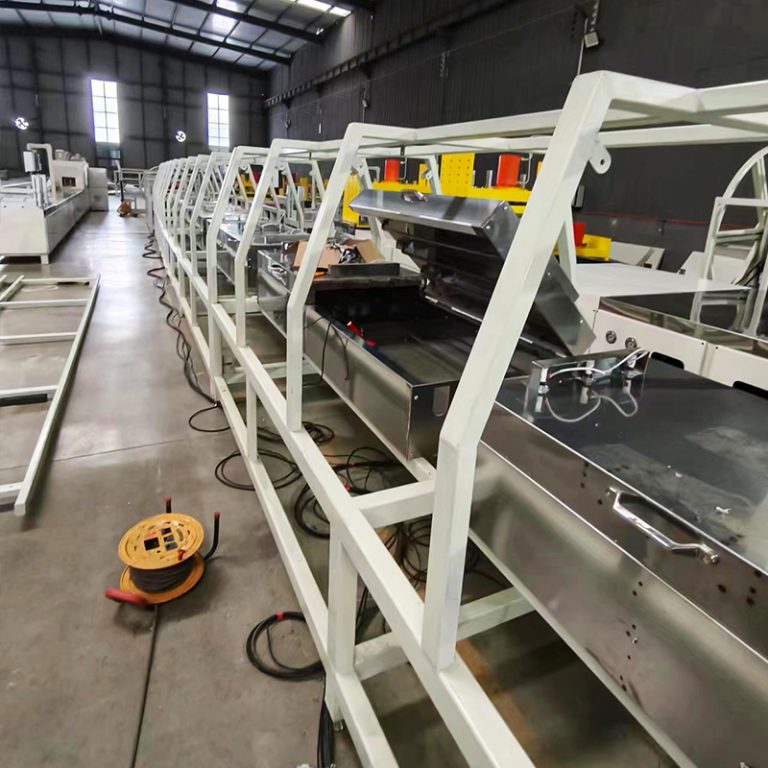

4. Oven: It is heated by a heater and controlled by an intelligent temperature controller. The heating box adopts a split structure, which can be easily opened to clean up dripping resin, and the interior is filled with heat insulation materials.
5. Automatic tracking cutting saw: The GFRP rebars on the production line can be cut to length online according to specific requirements.
6. Product stacking rack : After cutting, the GFRP rebars are stacked and taken away by production personnel for stackin.
