FRP Pultrusion Production Line in the case of ensuring the tensile strength,this process could increase the bending strength and rigidity to improve the whole strength. It is also good to increase the length/diameter ratio and decrease weight. Winding angle could be adjusted as client’s requirement to optimize.
FRP Pultrusion Production Line in the case of ensuring the tensile strength,this process could increase the bending strength and rigidity to improve the whole strength. It is also good to increase the length/diameter ratio and decrease weight. Winding angle could be adjusted as client’s requirement to optimize.
FRP Pultrusion Production Line in the case of ensuring the tensile strength,this process could increase the bending strength and rigidity to improve the whole strength. It is also good to increase the length/diameter ratio and decrease weight. Winding angle could be adjusted as client’s requirement to optimize.

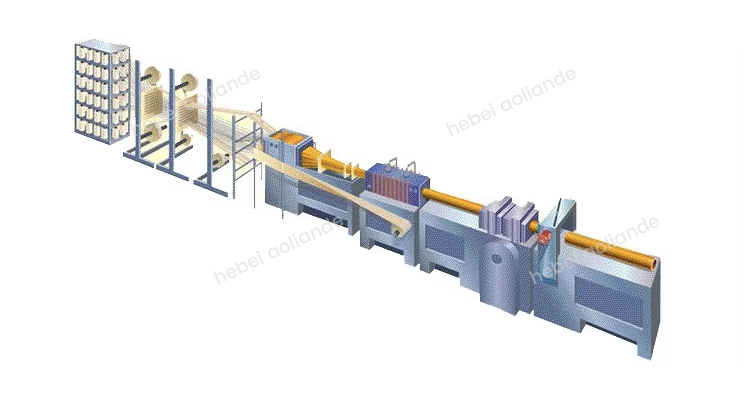

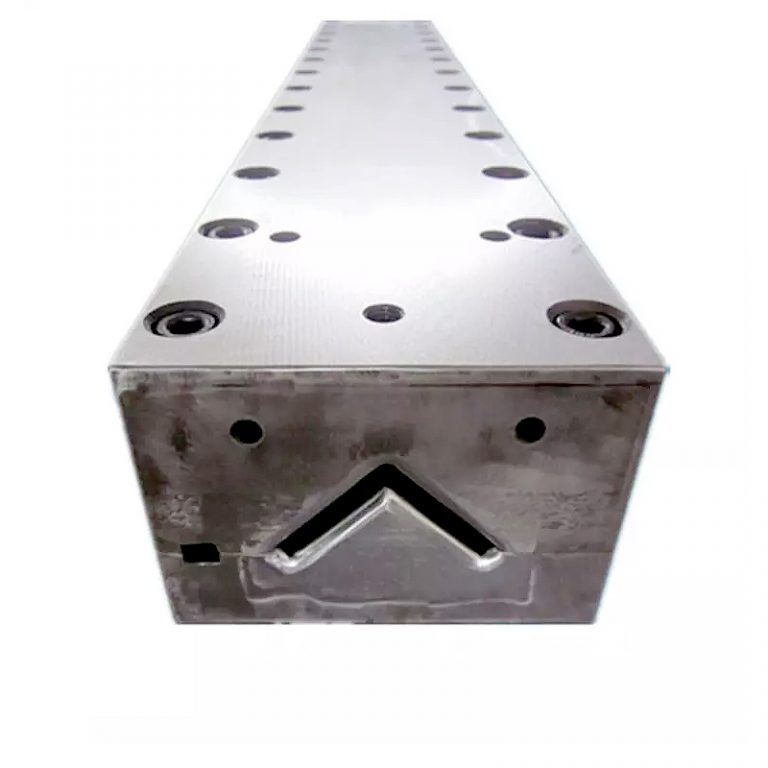

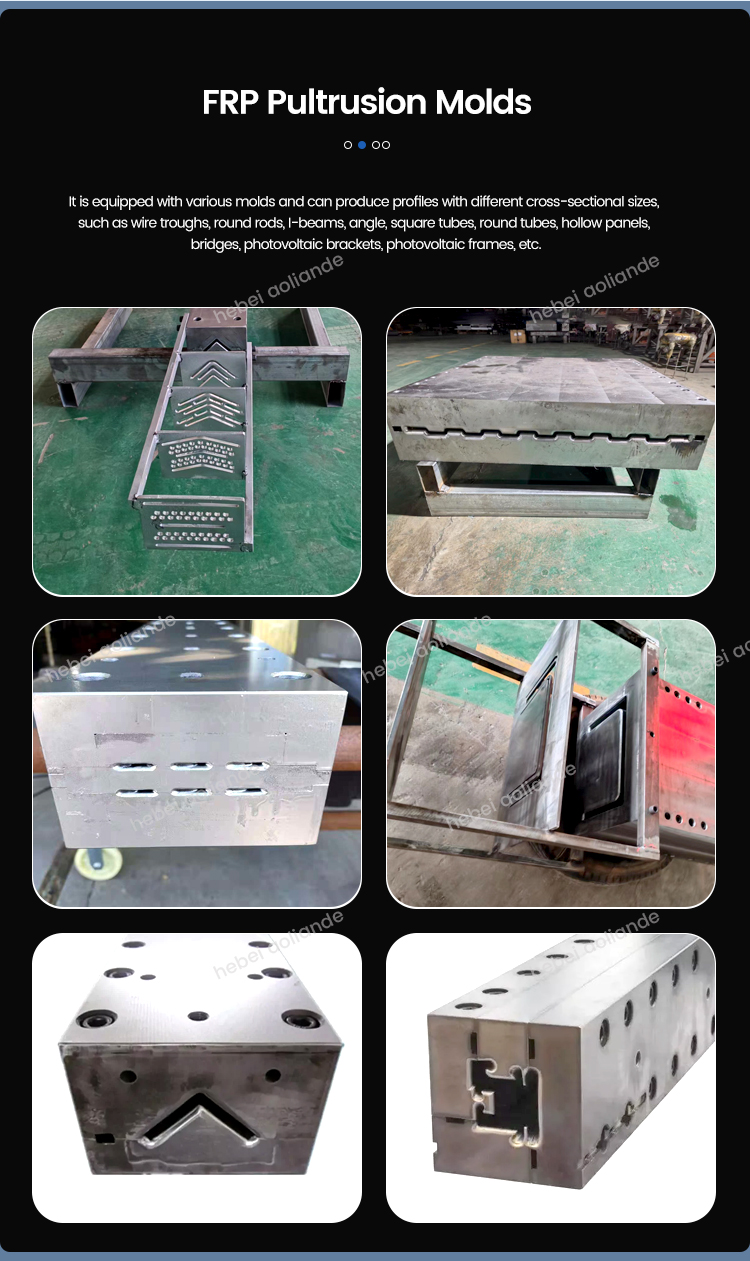

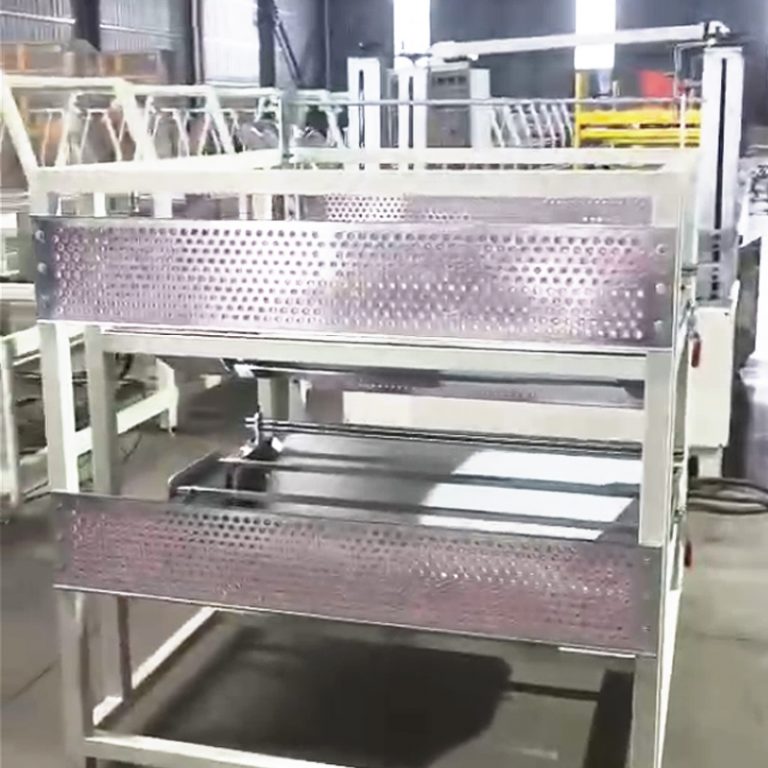

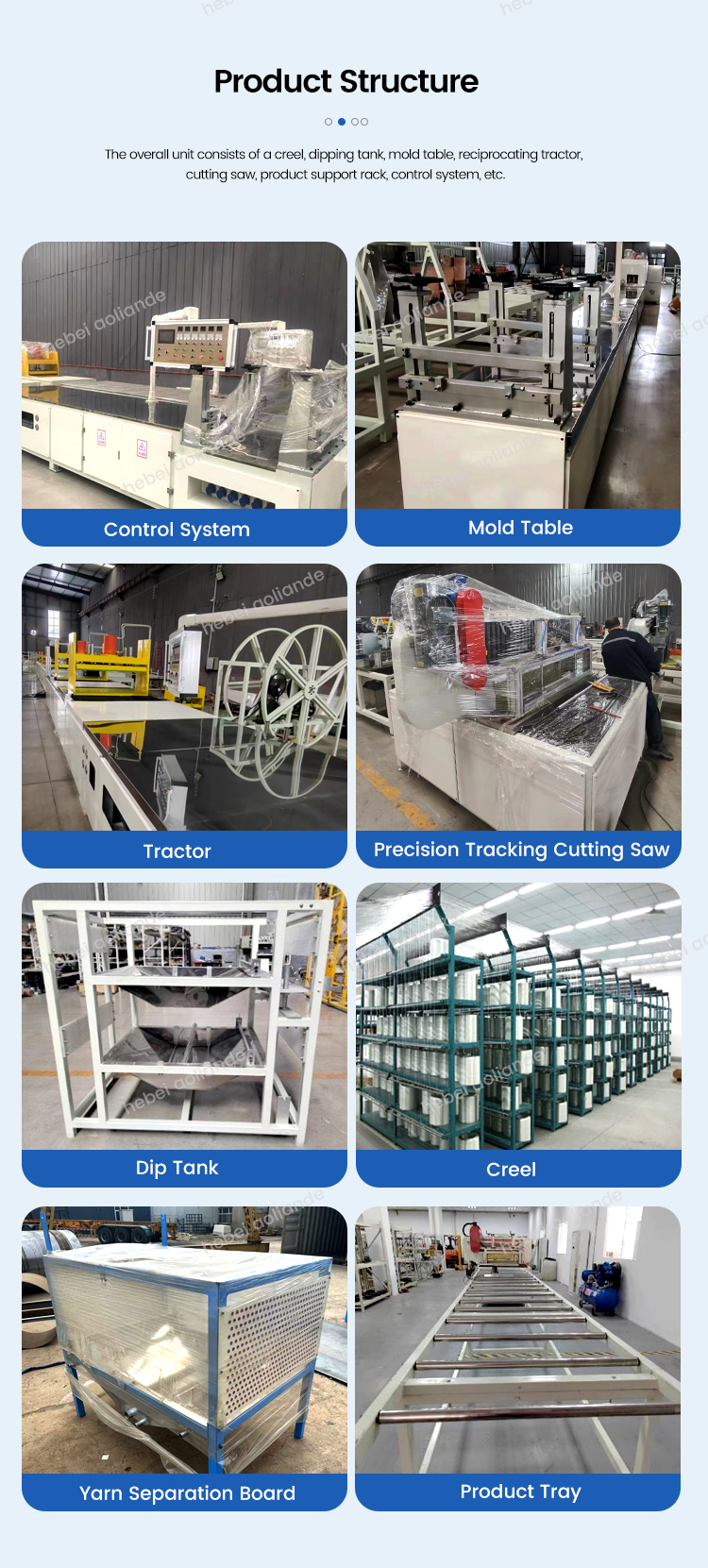

The hydraulic FRP pultrusion production line is controlled by PLC, has LCD display, and is a complete production unit integrating hydraulic reciprocating traction and pneumatic fixed-length cutting. The overall unit consists of a creel, dipping tank, mold table, reciprocating tractor, cutting saw, product support rack, control system, etc. It is equipped with various molds and can produce profiles with different cross-sectional sizes, such as wire troughs, round rods, I-beams, angle, square tubes, round tubes, hollow panels, bridges, photovoltaic brackets, photovoltaic frames, etc.

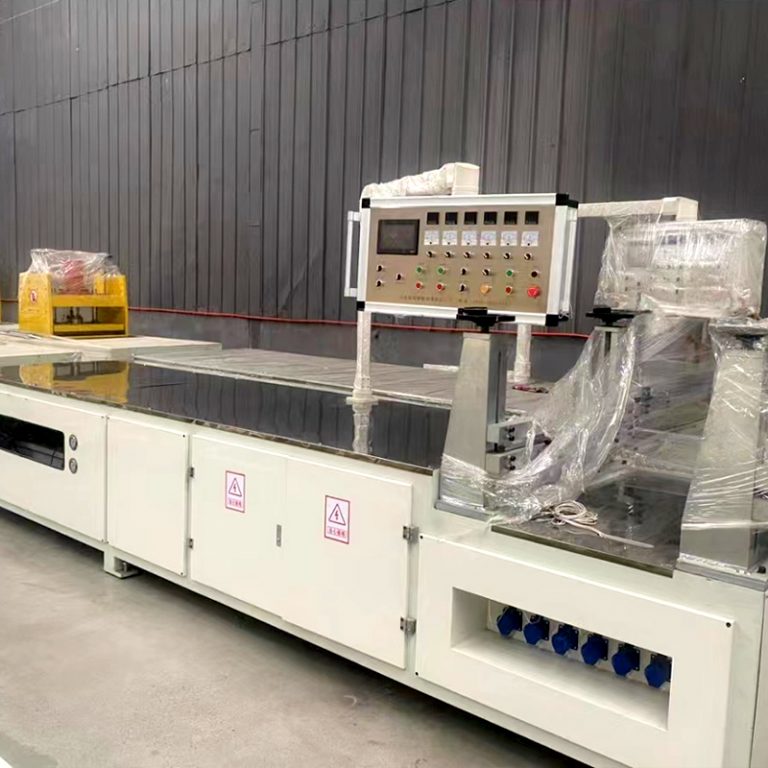

1. Temperature control adopts high-precision, dual-display instruments
2. Digital display of traction speed
3. The hydraulic cylinder seals are imported, and the hydraulic system uses a low- noise, energy-saving variable pump.
4. With automatic alarm for oil temperature and oil level faults.

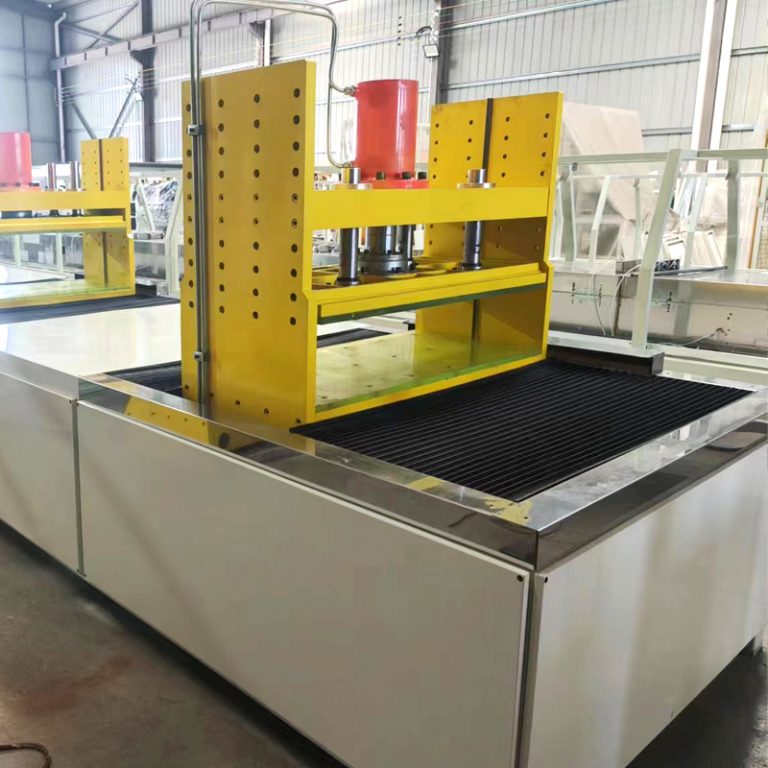

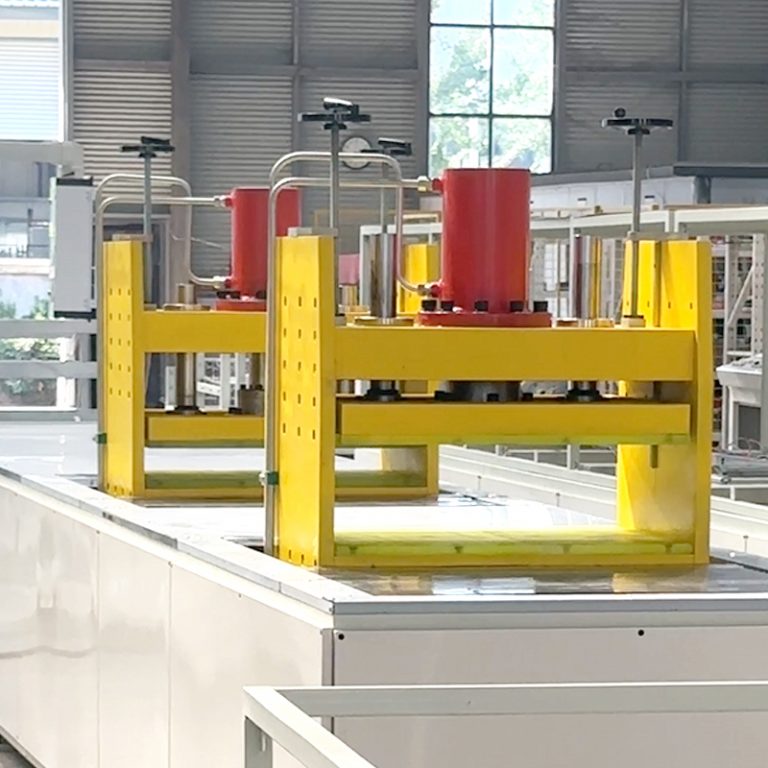

5. The hydraulic traction device has a variety of working modes to choose from, and the traction speed can be adjusted steplessly.

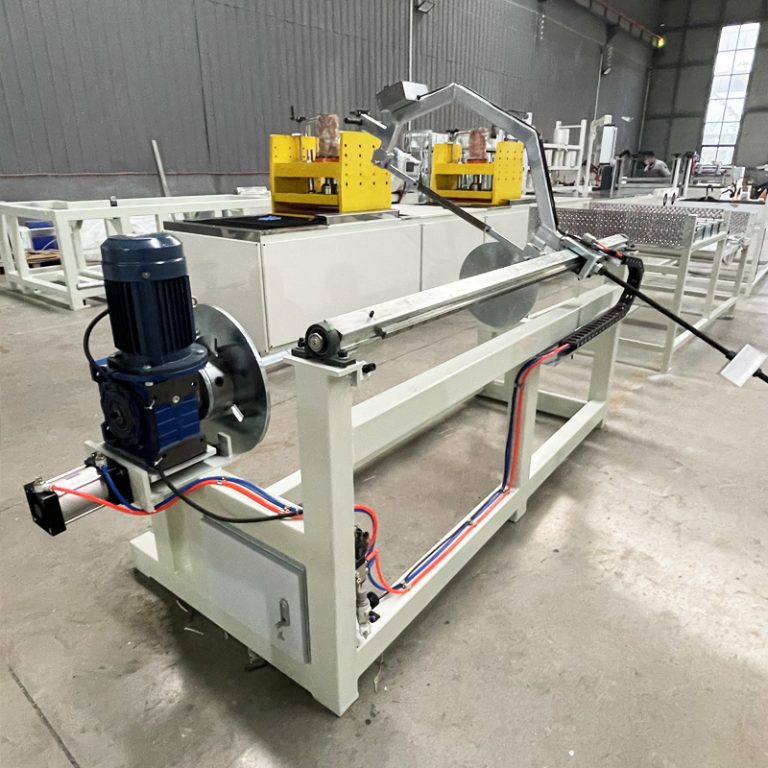

6. Using gear and rack for transverse cutting, pneumatic pressing, pneumatic tracking, and the cutting blade is toothlesssaw blade.
Total power of the unit: 380v/50hz 25kw (including mold heating)
Overall dimensions: 26m (length) × 2m (width) × 2m
| Items / Type |
ZLRCYZ
-3
|
ZLRCYZ -6 |
ZLRCYZ -10 |
ZLRCYZ -12 |
ZLRCYZ -15 |
ZLRCYZ -25 |
| Pulling Force(Tons) | 3 | 6 | 10 | 12 | 15 | 25 |
| Clamping Force(Tons) | Manual | 6 | 10 | 12 | 15 | 25 |
| Pulling Speed(m/min) | 0.1-1.4 | 0.1-1.5 | 0.1-1.5 | 0.1-1.5 | 0.1-1.5 | 0.1-1.2 |
| Envelop(W*H)m | 0.25*0.07 | 0.6*0.15 | 0.6*0.25 | 0.7*0.3 | 0.8*0.35 | 1.0*0.5 |
| Motor Cahacity(KW) | 2.2 | 2.3 | 2.4 | 2.55 | 2.75 | 2.75 |
| Heating capacity(KW) | 9.6 | 9.6 | 9.6 | 12 | 14.4 | 18 |
| Heating board size(L*W)m | 0.85*0.4 | 0.85*0.6 | 0.85*0.6 | 0.85*0.6 | 0.85*0.7 | 0.9*0.8 |
| Dimensions(L*W)m | 6.2*1.2 | 8.3*0.85 | 8.4*0.9 | 10*1.0 | 11*1.1 | 11*1.3 |
| Total Weight(Tons) | 1.2 | 3 | 3.5 | 4 | 4.5 | 6 |
| Transmit Type | Mechnic ai drive | Hydraulic | ||||

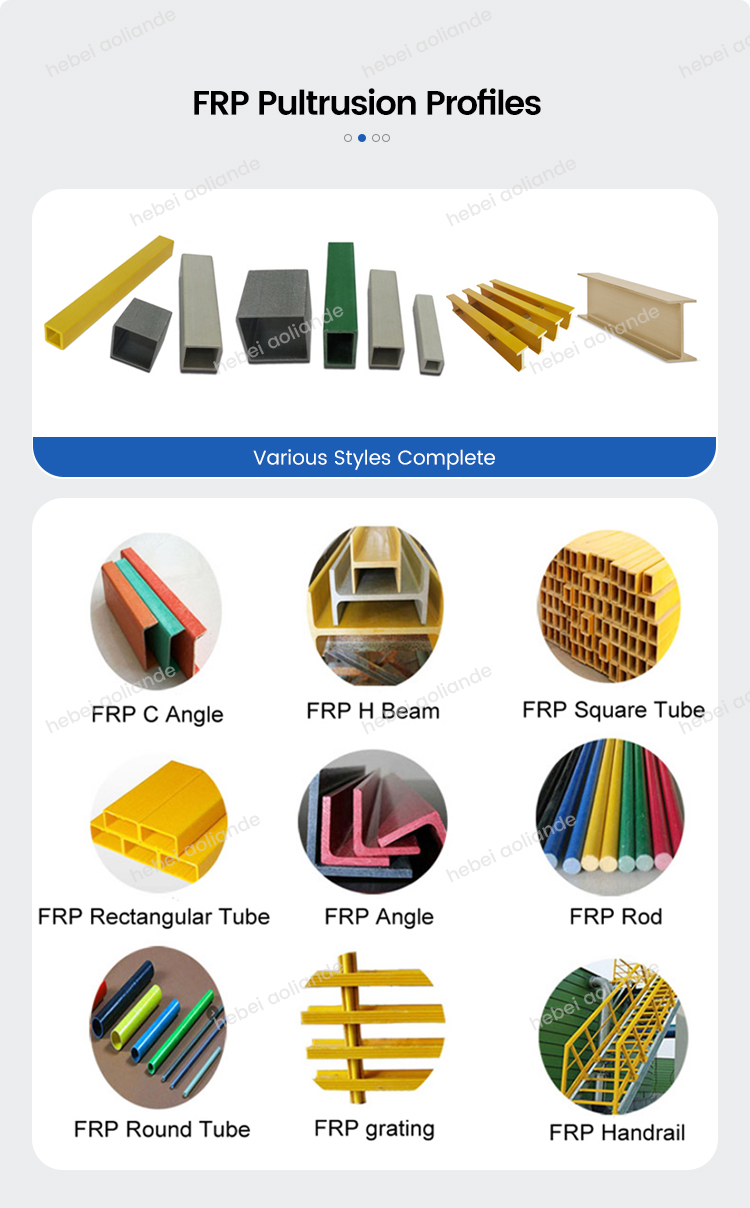

Pultrusion finished product
