FRP grating mold is a non-standard model of glass steel grille equipment, as the recent car gradually into the homes of ordinary people, around the car and car beauty shop in the ascendant. FRP grating in the field of caravans to promote, making the glass car grille market really formed, expanding the FRP grating has a new field. We have designed this specification in accordance with this form of equipment, because you can also in the direction of the length of the production of 3660mm and 4000mm grid plate, so the mold once listed, immediately received the majority of glass steel grille manufacturers of all ages.
| No. |

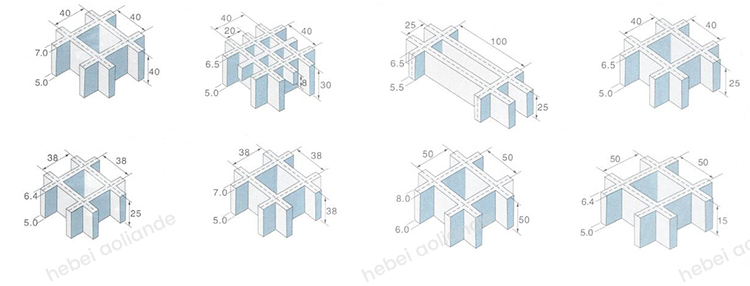

Mesh Size(mm) |
Grating Panel Size L×W×H(mm) |
Module(mm) |
| 1 |
38×38 |
1220×3660×38 |
38.5-41 |
| 2 |
38×38 |
1220×3660×30 |
30.5-32 |
| 3 |
38×38 |
1220×3660×25 |
25.5-27 |
| 4 |
50×50 |
1220×3660×50 |
50.5-52 |
| 5 |
38×38 |
1000×4038×38 |
38.5-41 |
| 6 |
38×38 |
1000×4038×25 |
25.5-27 |
Characteristic

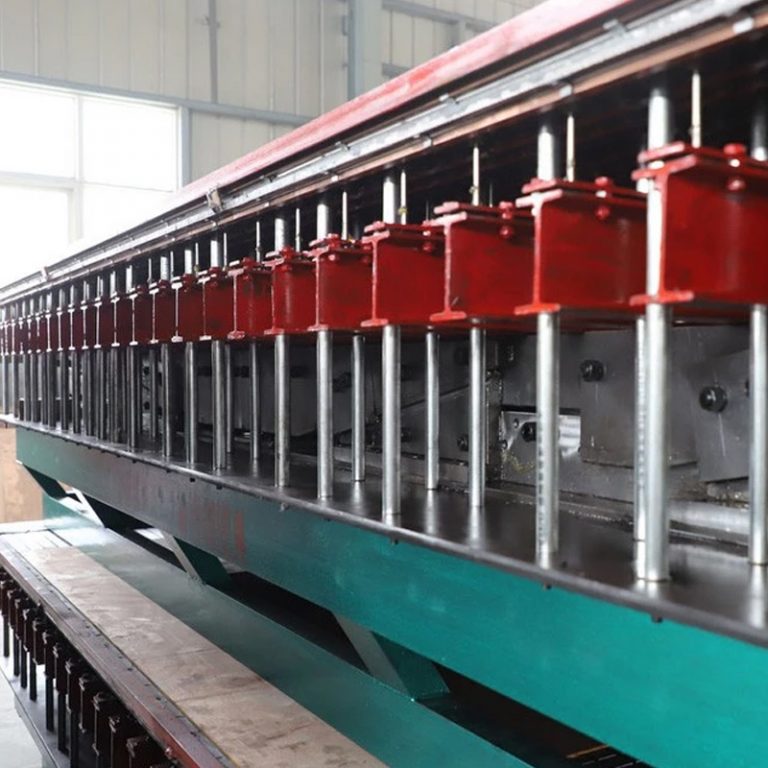

1. Ejector rod lifting device is two cylinder to parallel advance ,smooth ,no waving.
2. Stripping plate and stripping beam adopt elasticity connection,go up and down is parallel and steady.

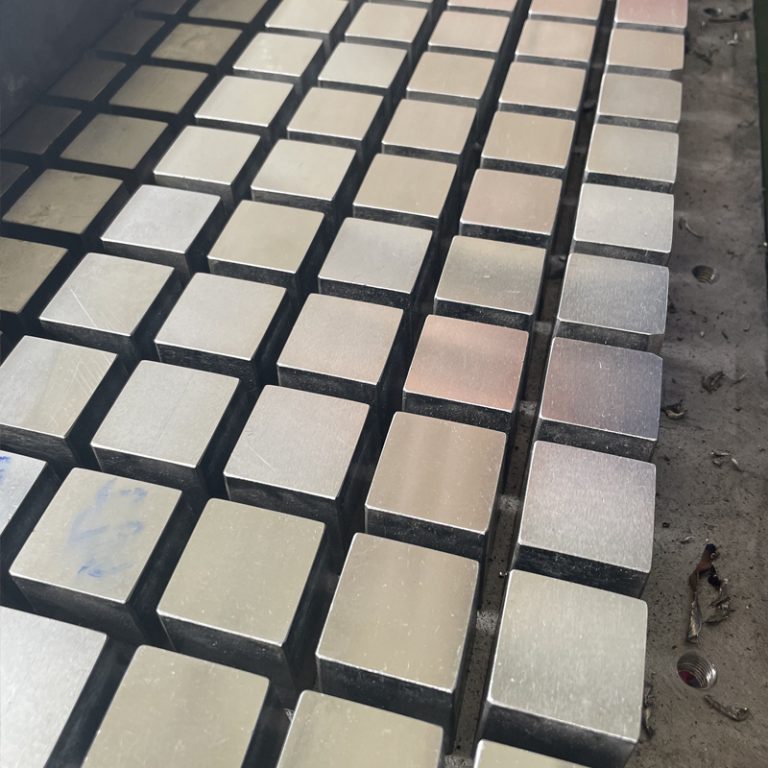

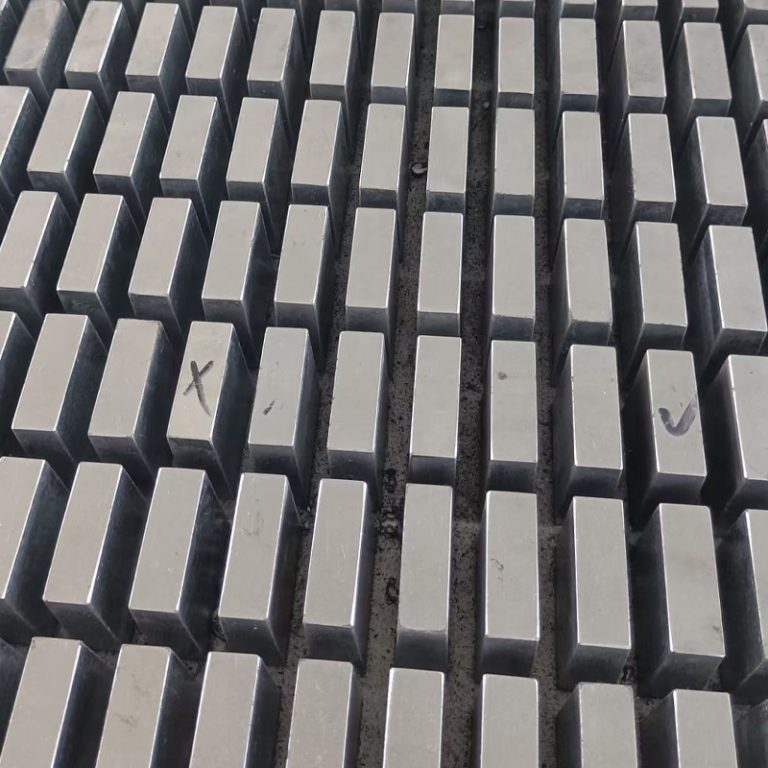

3. The module using delicate 45# steel,grinding,polishing and the surface is plating. It has antiseptic function,smooth and easy to demould.
4. Ejector rod can go up and down along with lifting device,easy to change and easy maintenance.
5. Ejector rod is made from steel parts grinding ,surface smooth,firmness and wear resistance.
6. Hydraulic station adopt hydraulic parts made by Sino-Japanese joint venture, it is long-life and durable

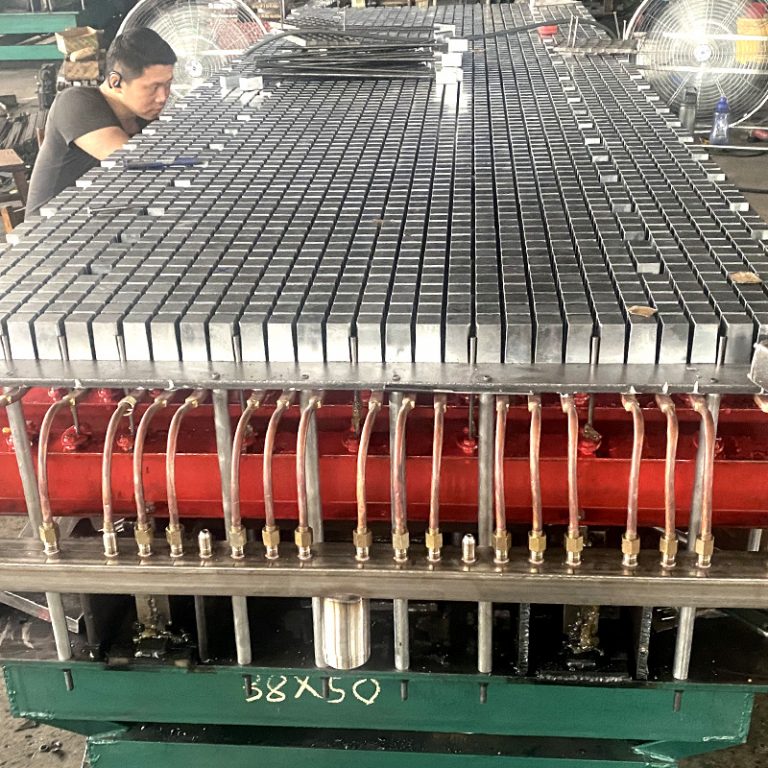

7. Mould temperature rise and drop are achieved by rectangular copper pipe, which have large contact area with template, temperature rise and drop fastly, and it can heat the mould top surface. In terms of the four borders of the mould,it is anti-corrosion and durable.

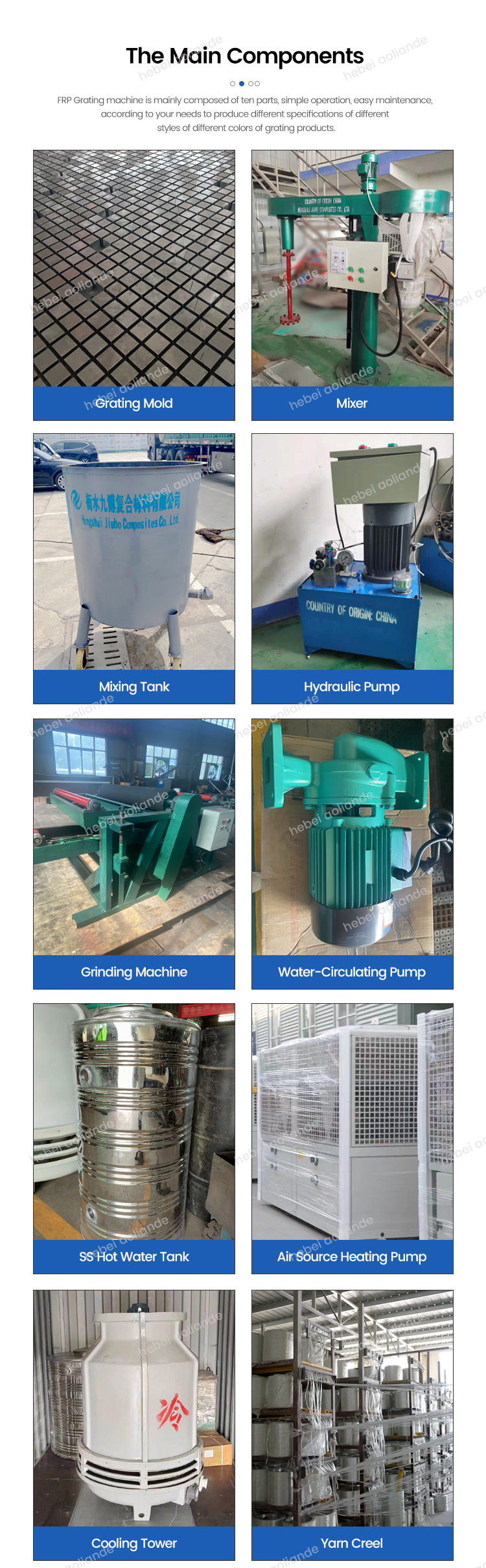

Our FRP molded grating production line is made of following devices:

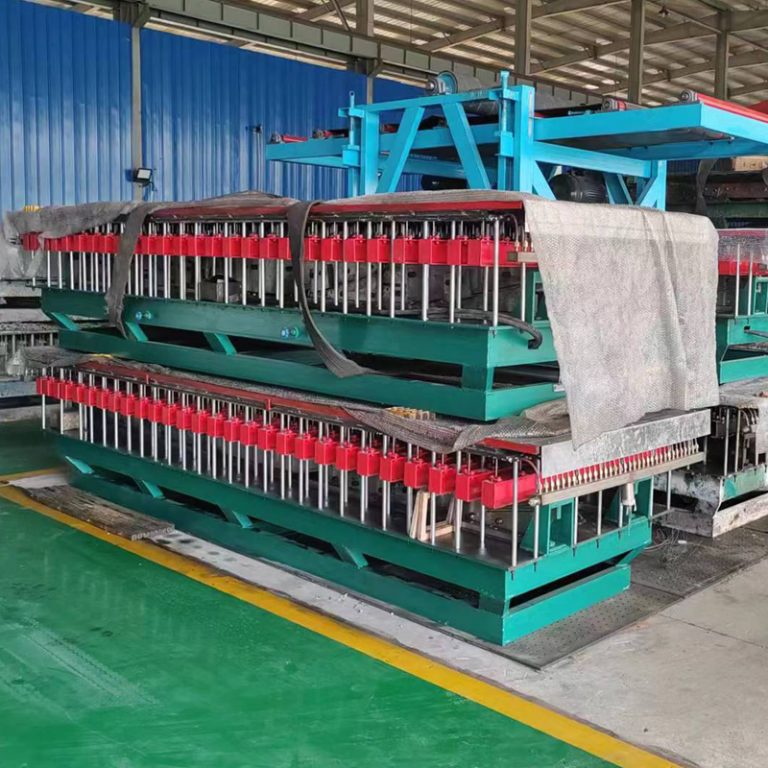

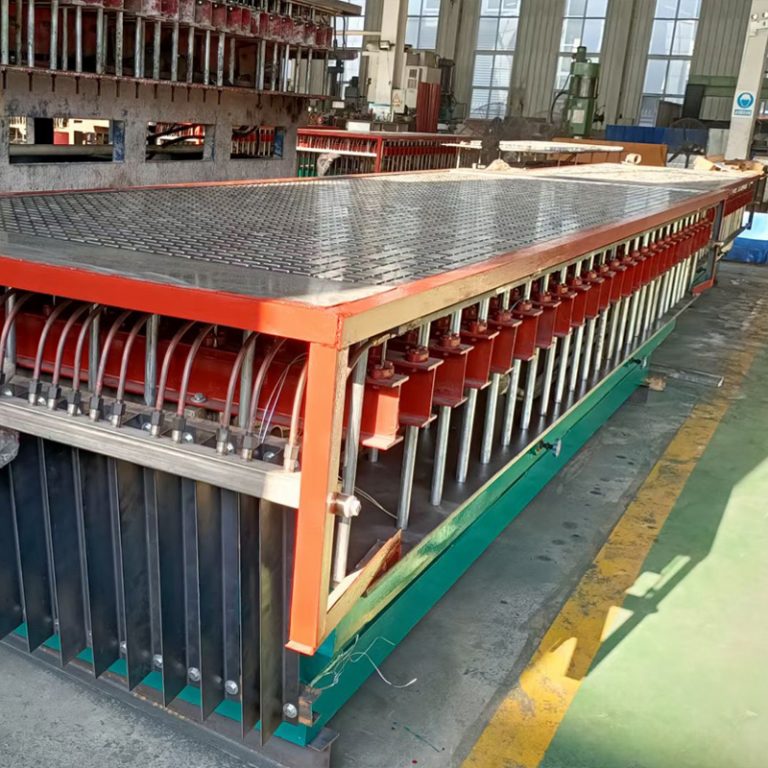

1) FRP Molded Grating Machine
2) Mixer
3) Storage tank
4) Hydraulic pump
5) Grinding machine
6) Water-circulating pump
7) SS hot water tank
8) Air source heating pump
9) Cooling tower
We provide full set of frp grating machines together with technology of producing if required.

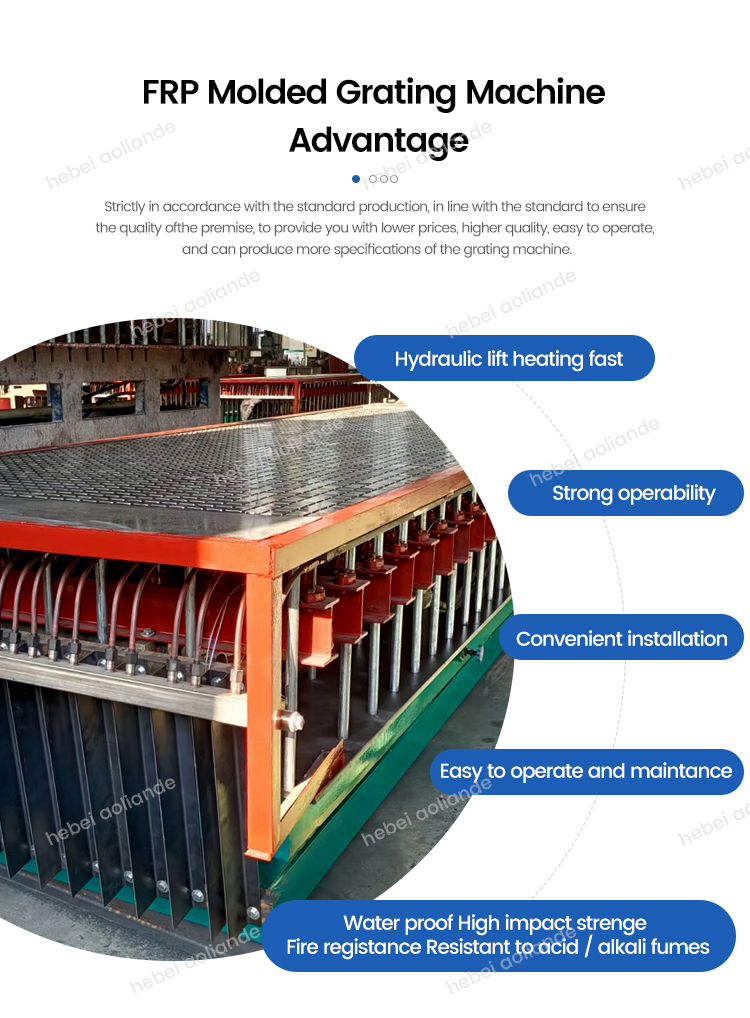

Main Features of FRP Grating Production Line:
1) Working principle: hydraulic lift;
2) Fast heating, strong operability;
3) Convenient installation;
4) 2kw moter, 10t hydraulic force;
5) Water heating or electric heating,automatic demould;
6) Easy operation,installation,and maintemance.
